In Stock: George Town Hub
IDEALCommercial & Industrial Valves

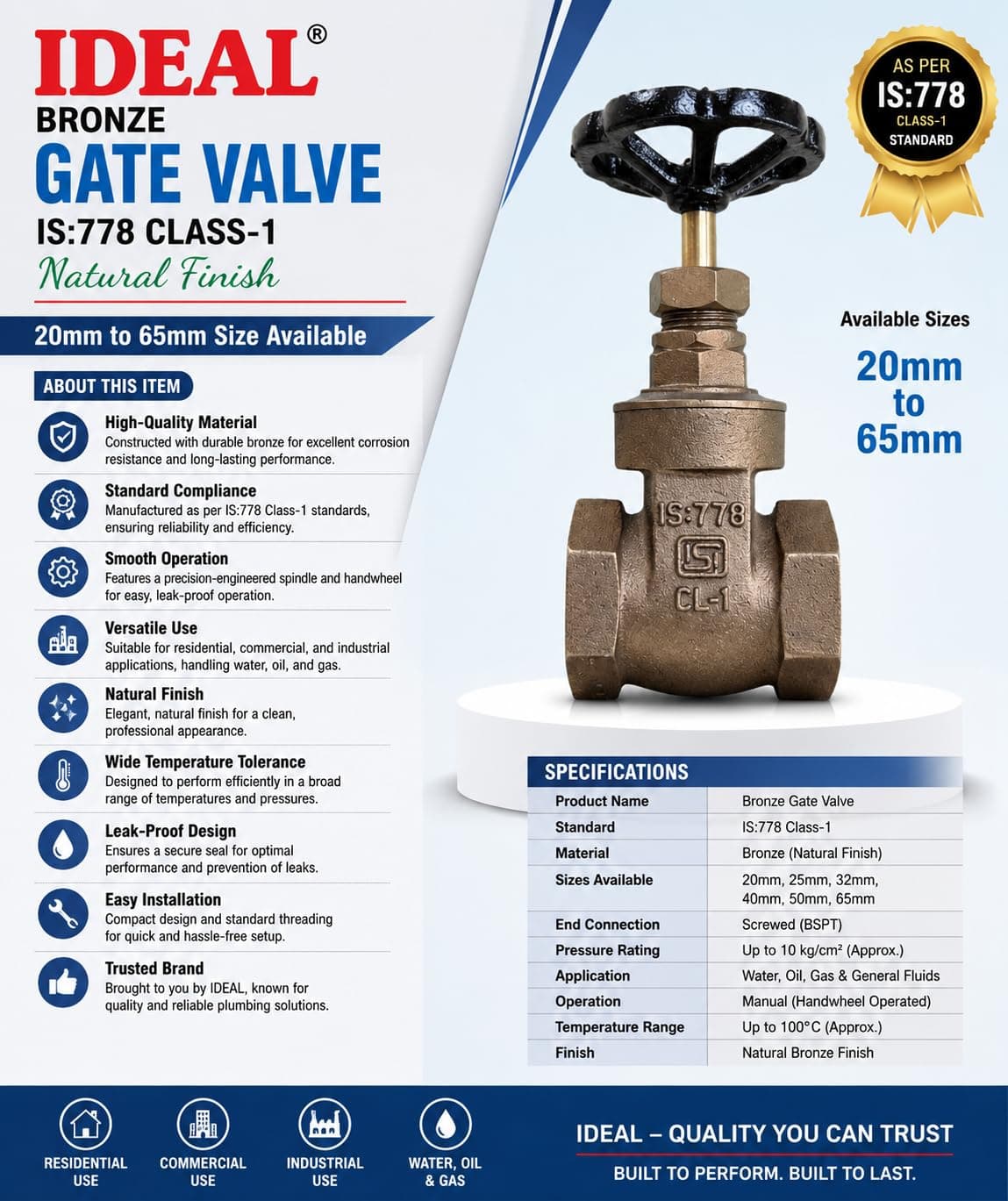

IDEAL® Bronze Gate Valve IS:778 Class-1 (Natural Finish)
SKU: SKU-IDL-GV-ALLModel: IDL-GV-IS778Code: SSH-VLV-IDL-004
Heavy-duty bronze gate valve manufactured to IS:778 Class-1 standards with non-rising spindle and cast iron handwheel for positive flow control.
Tested Commercial Grade
Direct Dispatch from George Town / Parrys Hub
Technical Properties & Specifications
Source Verified Parameters
Technical Specifications7 Parameters
Valve TypeSolid Wedge Gate Valve / Sluice Valve
Available Sizes15mm (1/2"), 20mm (3/4"), 25mm (1"), 32mm (1 1/4"), 40mm (1 1/2"), 50mm (2"), 65mm (2 1/2")
Body MaterialCast Bronze (Natural Finish)
Standard ComplianceIS:778 Class-1 Standard
Spindle & DiscNon-Rising High-Tensile Bronze Spindle & Solid Wedge Disc
End ConnectionFemale Screwed (BSP / NPT / IS:554)
Hydrostatic Test PressureBody: 1.5 MPa | Seat: 1.0 MPa
Procurement & Commercial5 Parameters
Approved MakesIDEAL
Brand AvailabilityIDEAL / Sunrise Sanitary & Hardwares
ManufacturerIDEAL
Packer & StockistSunrise Sanitary & Hardwares, Sembudoss St, Chennai - 600001
Amazon ASIN ReferenceB0DNW5PZ51 (20mm Specimen)
Additional Technical CharacteristicsExtended CMS Parameters
Key Feature 1
Manufactured as per IS:778 Class-1 standards for guaranteed structural integrity.Verified Source
Key Feature 2
Precision-machined non-rising spindle and solid wedge disc for smooth, leak-proof shutoff.Verified Source
Key Feature 3
High-grade cast bronze body with natural finish for outstanding corrosion resistance.Verified Source
Key Feature 4
Ergonomic cast iron handwheel for effortless operation under high static line pressure.Verified Source
Key Feature 5
Standard female threaded ends (BSP / NPT) for direct connection.Verified Source
Key Feature 6
Packer & Central Stockist: Sunrise Sanitary & Hardwares, Chennai.Verified Source
Recommended Application
Commercial building water riser isolationApproved
Recommended Application
Overhead tank and sump isolation mainsApproved
Recommended Application
Fire sprinkler system feeder linesApproved
Recommended Application
Industrial utility and HVAC chilled water circuitsApproved
